The AWG5200 Series arbitrary waveform generator (AWG) leads the way in signal generation by enabling bleeding-edge innovation for engineers and researchers. The AWG5200 Series of AWGs delivers unparalleled signal fidelity coupled with class-leading sample rate and memory depth, giving you the industry’s best signal stimulus solution for complex RF baseband signal generation and precision experimental applications. With up to 5 GS/s sample rate (10 GS/s with interpolation) and 16-bit vertical resolution, the AWG5200 Series offers easy generation of complex signals as well as accurate playback of existing captured signals.
- Sample rates up to 10 GS/s (with 2x interpolation)
- 2, 4, and 8 channel configurations
- -70 dBc spurious free dynamic range
- 16 bits vertical resolution
- 2 GSample waveform memory per channel
Key features
- Complete solution for complex RF signal generation in a single box
- Direct generation of signals with carriers up to 4 GHz, removing the need for external RF conversion
- Simulate real-world analog effects on high speed digital data streams
- Generate high precision RF signals
- Spurious Free Dynamic Range performance better than -70 dBc
- Create long complex waveforms without compromising bandwidth
-
Up to 2 GSamples of Waveform Memory plays 400 ms of data at 5 GS/s and 800 ms of data at 2.5 GS/s
-
-
Synchronize multiple units to achieve a multi-channel high speed AWG system
- Fully operational without external PC
- Built-in display and buttons make it possible to quickly select, edit, play waveforms and trigger on events directly from the AWG front panel
- Simulate real-world environments by playing back captured signals
-
Waveforms captured with Oscilloscopes or Real-Time Spectrum Analyzers can be played back, edited or re-sampled on the AWG
-
- Smooth transition from simulation to the real-world testing environment
- Waveform vectors imported from third-party tools such as MATLAB
Applications
- RF/MW waveform generation for communications and defense electronics testing and development
-
Output RF signals directly up to 4 GHz
-
- Leading edge research in electronics, physics & chemistry
- High speed, low jitter signal source generates uniquely specified analog signals, fast pulses, data streams and clocks
Seamless transition from simulation to generation
If a waveform can be defined or captured, then the AWG5200 can reproduce this signal. The creation of the waveform can happen in many ways. An extensive and growing library of waveform generation plugins which are optimized to work specifically with the Tektronix AWG family, provide specific waveform creation capabilities, while 3rd party solutions like MATLAB, Excel, or others, have the flexibility to create and import any waveform you desire. Waveforms created in any of these packages can be imported and played back in the AWG5200, seamlessly transitioning from the simulation world to the real world.
Advanced remote instrument control and waveform generation
The new SourceXpress platform brings all of your AWG instrument control and waveform generation capabilities to your Microsoft® Windows PC. Load waveforms, create sequences, and enable playback without ever having to touch an AWG. All waveform creation plug-ins run natively on the SourceXpress platform, allowing you to quickly iterate through test signals without having to set foot in the lab.
RF signal generation
RF signals are becoming more and more complex, making it difficult for RF engineers to accurately create the signals required for conformance and margin testing. When combined with the RF Generic waveform creation plug-in, the AWG5200 Series can address these tough design challenges. The RF Generic plug-in is a software package that digitally synthesizes modulated baseband, IF, and RF signals taking signal generation to new levels by fully exploiting the advanced signal generation capabilities of the AWG5200 Series arbitrary waveform generators.
Built in digital IQ modulator
Reducing the size and cost for telecommunication and military systems is driving the evolution of modern DAC’s to integrate more functionality into a single chip. Some of the more advanced high-speed DAC’s also incorporate digital signal processing and conditioning functionalities such as digital interpolation, complex modulation, and numerically controlled oscillators (NCO). This enables direct generation of complex RF signals in an efficient and compact way.
The Tektronix AWG5200 series features a digital complex modulator and multi-rate interpolation. With this internal IQ modulation feature, you remove the IQ mismatches that are attributed to external modulators and mixers. Also with this modulator, there is no in-band carrier feed-through, and there are no images. With its built in interpolators, it also affords the ability to create waveforms most efficiently reducing waveform size and compilation times as well as extending playback time.
Several DAC modes available
With the AWG5200 DAC there are several modes that enable you to output your signal at the cleanest portion of the DAC BW and frequency roll off positions.
Environment signal generation
The mission-critical nature of many radar signals requires that they coexist with standards-based commercial signals sharing the same spectrum without performance degradation. To meet this expectation, a radar designer has to thoroughly test all the corner cases at the design/debug stage. The AWG5200 offers the extreme flexibility and precision needed to play back these worst-case scenarios.
Specifications
All specifications are typical unless noted otherwise. All specifications apply to all models unless noted otherwise.
Hardware characteristics
- Number of analog outputs
-
- AWG5202
- 2
- AWG5204
- 4
- AWG5208
- 8
- Analog output connector type
- SMA female
- Analog output impedance
- 50 Ω
- Number of marker outputs
-
- AWG5202
- 8
- AWG5204
- 16
- AWG5208
- 32
- Resolution (nominal)
- 16 bits with no markers active, 15 bits with 1 marker active, 14 bits with 2 markers active, 13 bits with 3 markers active, 12 bits with 4 markers active
- Waveform memory
- 2 GS/channel
- Waveform granularity
- 1 sample
- Waveform minimum size
- 2400 samples
- Run modes
-
- Continuous
- Waveform is continuously repeated
- Triggered
- Waveform is output only once after a trigger is received
- Triggered Continuous
- Waveform is continuously repeated after a trigger is received
- Gated
- Waveform is continuously repeated while the trigger is enabled
- Sample rate (nominal)
- 300 S/s to 5 GS/s (10 GS/s Interpolated – Double Data Rate)
- Sin(x)/x (-3dB)
- 2.22 GHz @ 5 GS/s, 4.44 GHz Interpolated @ 10 GS/s
Computer characteristics
- Operating system / peripherals / IO
- Microsoft Windows 10 OS
USB 2.0 compliant ports (2 front)
USB 3.0 compliant Host ports (4 rear)
USB 3.0 compliant Device port (1 rear)
RJ-45 Ethernet connector (rear panel) supports 10/100/1000BASE-T
VGA video (rear panel) for external monitor
eSATA (rear panel)
- Display characteristics
- LED backlit touch screen display, 165 mm (6.5 in.) diagonal, 1024 × 768 XGA
- Software driver for third-party applications
- IVI-COM driver
IVI-C driver
Analog output characteristics
- Effective frequency output
- Fmaximum (specified) is determined as “sample rate / oversampling rate” or “SR / 2.5”.
- 2 GHz
- 4 GHz (Double Data Rate – DDR mode)
- DC High Bandwidth output
- Amplitude levels are measured as singled-ended outputs. Output doubles when using differential (both) outputs.
- Amplitude range
-
25 mVp-p to 0.75 Vp-p (single ended, 50 Ω terminated)
50 mVp-p to 1.5 Vp-p (differential mode, 100 Ω terminated)
- Amplitude accuracy (guaranteed)
-
±2% of setting ≥ 100 mVp-p
±5% of setting < 100 mVp-p
- Offset
- ±2 V (50 Ω into gnd), ±4 V into DC voltage terminated
- Offset accuracy
-
±(2% of |offset| + 10 mV); into 50 Ω to Gnd. (Common mode, guaranteed.)
±25 mV; into 100 Ω differential. (Differential mode.)
- Analog bandwidth
-
At 750 mVp-p: DC to 2 GHz (3 dB), DC to 4 GHz (6 dB)
- Rise/fall time
-
Rise/fall time measured at 20% to 80% levels.
< 115 ps at 750 mVp-p single-ended termination
- DC High Bandwidth Amplified output (option)
- Amplitude levels are measured as singled-ended outputs. Output doubles when using differential (both) outputs.
- Amplitude range
-
25 mVp-p to 1.5 Vp-p (single ended, 50 Ω terminated)
50 mVp-p to 3.0 Vp-p (differential mode, 100 Ω terminated)
- Amplitude accuracy (guaranteed)
-
±2% of setting ≥ 100 mVp-p
±5% of setting < 100 mVp-p
- Offset
- ±2 V (50 Ω into gnd), ±4 V into DC voltage terminated
- Offset accuracy
-
±(2% of |offset| + 10 mV); into 50 Ω to Gnd. (Common mode, guaranteed.)
±25 mV; into 100 Ω differential. (Differential mode.)
- Analog bandwidth
-
At 750 mVp-p: DC to 2 GHz (3 dB), DC to 4 GHz (6 dB)
At 1.5 Vp-p: DC to 1.3 GHz (3 dB)
- Rise/fall time
-
Rise/fall time measured at 20% to 80% levels.
< 180 ps at 1.5 Vp-p single-ended
- DC High Voltage output
- Amplitude levels are measured as singled-ended outputs. Output doubles when using differential (both) outputs.
- Amplitude range
-
10 mVp-p to 5.0 Vp-p (single ended, 50 Ω terminated)
20 mVp-p to 10.0 Vp-p (differential mode, 100 Ω terminated)
- Amplitude accuracy (guaranteed)
-
±2% of amplitude ≥ 160 mVp-p
±5% of amplitude < 160 mVp-p
- Offset
- ±2 V (50 Ω into gnd), ±4 V into high resistance or matching voltage terminated
- Offset accuracy
-
±(2% of |offset| + 1% of amplitude + 20 mV). (50 Ω-to-Gnd) (Common mode guaranteed.)
± 88 mV; into 100 Ω. (Differential mode.)
- Analog bandwidth
- DC – 370 MHz (3 dB) (at 2 Vp-p)
- DC – 200 MHz (3 dB) (at 4 Vp-p)
- Rise/fall time
-
Rise/fall time measured at 20% to 80% levels.
< 1.3 ns, at 5 Vp-p single-ended.
< 1.1 ns, at 4 Vp-p single-ended.
< 0.8 ns, at 3 Vp-p single-ended.
< 0.6 ns, at 2 Vp-p single-ended.
- AC Direct output
- Amplitude levels are measured as singled-ended outputs.
- Amplitude range
- -17 dBm to -5 dBm
- Amplitude accuracy
-
±0.5 dBm at 100 MHz
- DC bias
- ±5 V at 150 mA
- DC bias accuracy (guaranteed)
- ±(2% of bias + 20 mV); into an open circuit (zero load current)
- Analog bandwidth
- 10 MHz – 2 GHz (-3 dB), 10 MHz – 4 GHz (-6 dB)
- AC Amplified output (option)
- Amplitude levels are measured as singled-ended outputs.
- Amplitude range
-
-85 dBm to +10 dBm (10 MHz to 3.5 GHz)
-50 dBm to +10 dBm (>3.5 GHz to 5 GHz)
- Amplitude accuracy
-
±0.5 dBm at 100 MHz
- DC bias
- ±5 V at 150 mA
- DC bias accuracy (guaranteed)
- ±(2% of bias + 20 mV); into an open circuit (zero load current)
- Analog bandwidth
- 10 MHz – 2 GHz (-3 dB), 10 MHz – 4 GHz (-6 dB)
- Output match VSWR
-
-
Output path Specification DC High Bandwidth (including DCHB Amplified option) DC to 1 GHz < 1.25:1
1 GHz to 3 GHz < 1.9:1
3 GHz to 4 GHz < 2.3:1
DC High Voltage DC to 400 MHz < 1.6:1
400 MHz to 1 GHz < 1.75:1
1 GHz to 2 GHz < 2.3:1
AC Direct 10 MHz to 300 MHz < 2.0:1
300 MHz to 1.4 GHz < 1.6:1
1.4 GHz to 3 GHz < 2.2:1
3 GHz to 4 GHz < 2.5:1
AC Amplified, +3 dBm 10 MHz to 500 MHz < 2.4:1
500 MHz to 1.5 GHz < 1.75:1
1.5 GHz to 4 GHz < 1.9:1
-
- Bit rate
- Bit rate determined as “sample rate / 4 points per cycle”, allowing full impairment generation.
1.25 Gb/s at 5 GS/s
Channel timing characteristics
Skew
- Channel to channel skew (DC high bandwidth mode only)
-
±25 ps
- Skew adjust
-
- Range
- ±2 ns
- Resolution
- 250 fs
Sequencer characteristics
Sequencer
- Maximum sequencing steps
- 16,384
- Sub sequencing
- Single level of depth
Spurious Free Dynamic Range (SFDR) characteristics

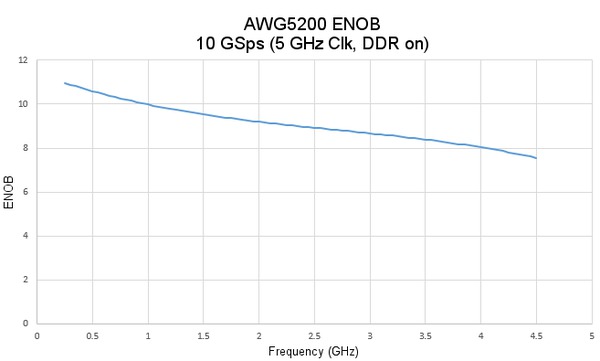

ENOB
- Effective number of bits (ENOB)
-
SFDR
- SFDR characteristics
-
SFDR is determined as a function of the directly generated carrier frequency.
Harmonics not included. Measured with a balun and with output amplitude set to 500 mV.
- DC High Bandwidth
-
500 mVpp
2.5 GS/s In band performance Adjacent band performance Analog channel output frequency Measured across Specification Measured across Specification 100 MHz 10 to <1250 MHz –80 dBc – – 10 to <155 MHz 10 to <1250 MHz –80 dBc – – 155 to <1000 MHz 10 to <1000 MHz –53 dBc 1000 to <1250 MHz –60 dBc 1000 to <1250 MHz 1000 to <1250 MHz –50 dBc 10 to <1000 MHz –50 dBc -
5 GS/s In band performance Adjacent band performance Analog channel output frequency Measured across Specification Measured across Specification 100 MHz 10 to <1250 MHz –80 dBc 1250 to <2500 MHz –75 dBc 10 to <310 MHz 10 to <1250 MHz –80 dBc 1250 to <2500 MHz –70 dBc 310 to <1250 MHz 10 to <1250 MHz –67 dBc 1250 to <2500 MHz –64 dBc 1250 to <2000 MHz 1250 to <2000 MHz –53 dBc 10 to <1250 MHz –38 dBc – – 2000 to <2500 MHz –58 dBc 2000 to <2500 MHz 2000 to <2500 MHz –33 dBc 10 to <2000 MHz –31 dBc -
10 GS/s In band performance Adjacent band performance Analog channel output frequency Measured across Specification Measured across Specification 100 MHz 10 to <1250 MHz –80 dBc 1250 to <5000 MHz –69 dBc 10 to <625 MHz 10 to <1250 MHz –74 dBc 1250 to <5000 MHz –63 dBc 625 to <1250 MHz 10 to <1250 MHz –69 dBc 1250 to <5000 MHz –59 dBc 1250 to <2000 MHz 1250 to <2000 MHz –63 dBc 10 to <1250 MHz –60 dBc – – 2000 to <5000 MHz –54 dBc 2000 to <3500 MHz 2000 to <3500 MHz –50 dBc 10 to <2000 MHz –47 dBc – – 3500 to <5000 MHz –50 dBc 3500 to <4000 MHz 3500 to <4000 MHz –53 dBc 10 to <3500 MHz –43 dBc – – 4000 to <5000 MHz –54 dBc
- AC Direct Out
-
–5.0 dBm. Harmonics not included. Measured at the maximum output amplitude.
2.5 GS/s In band performance Adjacent band performance Analog channel output frequency Measured across Specification Measured across Specification 100 MHz 10 to <1250 MHz –80 dBc – – 10 to <155 MHz 10 to <1250 MHz –80 dBc – – 155 to <1000 MHz 10 to <1000 MHz –62 dBc 1000 to <1250 MHz –66 dBc 1000 to <1250 MHz 1000 to <1250 MHz –60 dBc 10 to <1000 MHz –62 dBc -
5 GS/s In band performance Adjacent band performance Analog channel output frequency Measured across Specification Measured across Specification 100 MHz 10 to <1250 MHz –80 dBc 1250 to <2500 MHz –75 dBc 10 to <310 MHz 10 to <1250 MHz –80 dBc 1250 to <2500 MHz –70 dBc 310 to <1250 MHz 10 to <1250 MHz –67 dBc 1250 to <2500 MHz –60 dBc 1250 to <2000 MHz 1250 to <2000 MHz –58 dBc 10 to <1250 MHz –55 dBc – – 2000 to <2500 MHz –60 dBc 2000 to <2500 MHz 2000 to <2500 MHz –62 dBc 10 to <2000 MHz –51 dBc -
10 GS/s In band performance Adjacent band performance Analog channel output frequency Measured across Specification Measured across Specification 100 MHz 10 to <1250 MHz –80 dBc 1250 to <5000 MHz –64 dBc 10 to <625 MHz 10 to <1250 MHz –78 dBc 1250 to <5000 MHz –59 dBc 625 to <1250 MHz 10 to <1250 MHz –71 dBc 1250 to <5000 MHz –57 dBc 1250 to <2000 MHz 1250 to <2000 MHz –67 dBc 10 to <1250 MHz –60 dBc – – 2000 to <5000 MHz –55 dBc 2000 to <3500 MHz 2000 to <3500 MHz –52 dBc 10 to <2000 MHz –48 dBc – – 3500 to <5000 MHz –56 dBc 3500 to <4000 MHz 3500 to <4000 MHz –55 dBc 10 to <3000 MHz –41 dBc – – 4000 to <5000 MHz –58 dBc
Clock characteristics
- Clock in
-
- Connector
- SMA (rear panel)
- Input impedance
- 50 Ω, AC coupled
- Frequency range
- 2.5 GHz to 5 GHz
- Input amplitude
- 0 dBm to +10 dBm
- Clock output
-
- Connector
- SMA on rear-panel
- Output impedance
- 50 Ω AC Coupled
- Frequency range
- 2.5 GHz to 5 GHz
- Output amplitude
- +3 dBm to +10 dBm
- Sampling clock
-
- Resolution
- Up to 8 digits
- Accuracy
- Dependent on reference frequency accuracy
- Synchronization clock output
-
- Frequency
- External clock output /32
- Amplitude
- 0.85 V to 1.25 V p-p into 50 Ω
- Connector
- SMA (rear panel)
- Impedance
- 50 Ω, AC coupled
Trigger in
- Inputs
- 2 (A and B)
- Polarity
- Pos or Neg
- Impedance
- 50 Ω, 1 kΩ
- Input range
-
50 Ω: <5 Vrms
1 kΩ: ±10 V
- Connector
- SMA (rear panel)
- Threshold
-
Range -5.0 V to 5.0 V Resolution 0.1 V Accuracy ±(5% +100 mV) - Trigger Delay to Analog Output
-
Synchronous 8275 / fclk + 30 ns ±20 ns - Synchronous Trigger Jitter
-
Synchronous mode
50 Ω or 1 kΩ
Frame synchronized
< 100 ps peak-to-peak
- Trigger minimum pulse width
- 20 ns
- Trigger hold-off (maximum)
-
2432/FCLK + 20 ns
506.4 ns at 5 GS/s
992.8 ns at 2.5 GS/s
Reference in
- Input amplitude
- –5 dBm to +5 dBm
- Fixed frequency range
- 10 MHz, ±40 Hz
- Variable frequency range
- 35 MHz to 240 MHz
- Connector
- SMA (rear panel)
- Impedance
- 50 Ω, AC coupled
10 MHz reference
- Connector
- SMA (rear panel)
- Impedance
- 50 Ω, AC coupled
- Amplitude
- +4 dBm ±2 dBm
- Frequency (guaranteed)
- Within ±(1 ppm + Aging), Aging: ±1 ppm per year
Auxiliary outputs (Flags)
- NumberAWG5202: 4
-
AWG5204: 4
AWG5208: 8
- Connector
- SMB on rear-panel
- Output amplitude
-
High 2.0 V into 50 Ω
Low 0.7 V when sinking 10 mA
- Output impedance
- 50 Ω
Markers
- Number
- AWG5202: Total of 8 (4 per channel)
AWG5204: Total of 16 (4 per channel)
AWG5208: Total of 32 (4 per channel)
- Marker sample rate
- 2.5 GS/s to 5 GS/s
- Minimum pulse width
- 400 ps
- Max data rate
- 2.5 GS/s
- Type
- Single-ended
- Connector
- SMA (rear panel)
- Impedance
- 50 Ω
- Output into 50 Ω
- Window: -0.5 V to 1.7 V
Amplitude: 200 mV to 1.75 V
Resolution: 100 μV
- Rise time
- (20% – 80%): 150 ps
- Skew between markers of the same channel
- <25 ps
- Delay control
- ±2 ns
- Random jitter
- 5 ps
Pattern jump
- Pin assignments
-
Pin Pin Pin 1 GND 6 GND 11 Jump bit 5, input 2 Jump bit 0, input 7 Strobe, input 12 Jump bit 6, input 3 Jump bit 1, input 8 GND 13 Jump bit 7, input 4 Jump bit 2, input 9 GND 14 GND 5 Jump bit 3, input 10 Jump bit 4, input 15 GND - Input impedance
- 1 kΩ pull-down to +5 VDC
- Input levels
-
3.3 V LVC
5 V TTL compliant
- Number of destinations
- 256
- Strobe polarity
- Negative and positive edge (selectable)
- Strobe Minimum Pulse Width
- 20 ns
- Strobe Setup and Hold
-
Setup: 20 ns
Hold: 20 ns
Waveform capability
Waveform import
- Waveform file import capability
- Import waveform format by series:
.AWGX file created by Tektronix AWG5200/70000 Series
.AWG file created by Tektronix AWG5000 or AWG7000 Series
.PAT and *.WFM file formats created by Tektronix AWG400/500/600/700 Series
.IQT file format created by Tektronix RSA3000 Series
.TIQ file format created by Tektronix RSA6000/5000 Series or MDO4000 Series
.WFM or *.ISF file formats created by Tektronix TDS/DPO/MSO/DSA Series
.TXT file format
.MAT Matlab file format
.SEQX file format created by Tektronix AWG5200 Series
.SEQ file format created by the Tektronix AWG400/500/600/700 Series
.TMP or .PRM file formats; Midas Blue (Data Type 1000/1001; Scalar and complex data; 8-,16-, 32-, and 64-bit integer and 32- and 64-bit float data format types)
Waveform export
- Waveform file export capability
- .WFMX file format, AWG5200/70000 series native format
.WFM file format, AWG400/500/600/700 waveform file
.TIQ file format, RSA6000 IQ Pair
.TXT file format
Physical characteristics
- Dimensions
-
- Height
- 153.6 mm (6.05 in)
- Width
- 460.5 mm (18.13 in)
- Depth
- 603 mm (23.76 in)
- Weight
-
- AWG5202
- 44 lb (19.96 kg), 46.35 lb (21.02 kg) with packaging
- AWG5204
- 45.45 lb (20.62 kg), 47.75 lb (21.66 kg) with packaging
- AWG5208
- 50.7 lb (23 kg), 53 lb (24.04 kg) with packaging
- Cooling clearance
-
- Top
- 0 in
- Bottom
- 0 in
- Left side
- 50 mm (2 in)
- Right side
- 50 mm (2 in)
- Rear
- 0 in
- Power supply
-
- AC line input
- 100 to 240 V AC, 50/60 Hz
- Consumption
- 750 Watts, maximum
EMC, Environment, Safety
- Temperature
-
- Operating
- 0 ºC to +50 ºC (+32 ºF to +122 ºF)
- Non-operating
- -20 ºC to +60 ºC (-4 ºF to +140 ºF )
- Humidity
-
- Operating
-
5% to 90% relative humidity (% RH) at up to 30 °C
5% to 45% relative humidity above 30 °C up to 50 °C
Non-condensing
- Non-operating
-
5% to 90% relative humidity (% RH) at up to 30 °C
5% to 45% relative humidity above 30 °C up to 60 °C
Non-condensing
- Altitude
-
- Operating
-
Up to 3,000 meters (9,843 feet)
Derate maximum operating temperature by 1 °C per 300 meters above 1500 meters.
- Nonoperating
- Up to 12,000 meters (39,370 feet)
- Mechanical shock
-
- Operating
- Half-sine mechanical shocks, 30 g peak, 11 ms duration, 3 drops in each direction of each axis.
- Regulatory
-
- Safety
- UL61010-1, CAN/CSA-22.2, No.61010-1-04, EN61010-1, IEC61010-1
- Emissions
- EN55011 (Class A), IEC61000-3-2, IEC61000-3-3
- Immunity
- IEC61326, IEC61000-4-2/3/4/5/6/8/11
- Regional certifications
-
Europe Australia/New Zealand EN61326 AS/NZS 2064
Ordering information
AWG5200 family
AWG5202 16 bit, 2 GSamples/channel record length, 2-channel arbitrary waveform generator
- AWG5200-225 2.5 GS/s
- AWG5200-250 5 GS/s (10 GS/s interpolated)
- AWG5200-2DC High Bandwidth Amplified outputs
- AWG5200-2HV High Voltage outputs
- AWG5200-2AC AC Amplified outputs
- AWG5200-2DIGUP Digital up conversion (requires AWG5200-250)
- AWG5200-SEQ Sequencing
AWG5204 16 bit, 2 GSamples/channel record length, 4-channel arbitrary waveform generator
- AWG5200-425 2.5 GS/s
- AWG5200-450 5 GS/s (10 GS/s interpolated)
- AWG5200-4DC High Bandwidth Amplified outputs
- AWG5200-4HV High Voltage outputs
- AWG5200-4AC AC Amplified outputs
- AWG5200-4DIGUP Digital up conversion (requires AWG5200-450)
- AWG5200-SEQ Sequencing
AWG5208 16 bit, 2 GSamples/channel record length, 8-channel arbitrary waveform generator
AWG5200-825 2.5 GS/s
AWG5200-850 5 GS/s (10 GS/s interpolated)
Standard accessories
Specify power cord and language option at time of order
- 136-7162-xx Two 50 Ω, 18 GHz, SMA terminators per channel
- 071-3529-xx Installation and safety manual (English)
- —Certificate of calibration
- —Power cord
Options
Power plug options
- Opt. A0 North America power plug (115 V, 60 Hz)
- Opt. A1 Universal Euro power plug (220 V, 50 Hz)
- Opt. A2 United Kingdom power plug (240 V, 50 Hz)
- Opt. A3 Australia power plug (240 V, 50 Hz)
- Opt. A4 North America power plug (240 V, 50 Hz)
- Opt. A5 Switzerland power plug (220 V, 50 Hz)
- Opt. A6 Japan power plug (100 V, 50/60 Hz)
- Opt. A10 China power plug (50 Hz)
- Opt. A11 India power plug (50 Hz)
- Opt. A12 Brazil power plug (60 Hz)
- Opt. A99 No power cord
Language options
- Opt. L0 English manual
- Opt. L5 Japanese manual
- Opt. L7 Simplified Chinese manual
- Opt. L8 Traditional Chinese manual
- Opt. L10 Russian manual
- Opt. L99 No manual
Service options
- Opt. C3 Calibration Service 3 Years
- Opt. C5 Calibration Service 5 Years
- Opt. CA1 Single Calibration or Functional Verification
- Opt. D1 Calibration Data Report
- Opt. D3 Calibration Data Report 3 Years (with Opt. C3)
- Opt. D5 Calibration Data Report 5 Years (with Opt. C5)
- Opt. G3 Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- Opt. G5 Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- Opt. IF Upgrade Installation Service
- Opt. R3 Repair Service 3 Years (including warranty)
- Opt. R5 Repair Service 5 Years (including warranty)
Post sales service options
- CA1 Single calibration or functional verification
- R5DW Repair service coverage 5 years
- R2PW Repair service coverage 2 years post warranty
- R1PW Repair service coverage 1 year post warranty
Recommended accessories
| Item | Description | Part number |
|---|---|---|
| GPIB to Ethernet Instrument Interface | GPIB to USB Adapter enables GPIB control through USB B port | ICS Model 4865B |
| Power Splitters | 1.5 kHz – 18 GHz | Mini-Circuits ZX10-2-183-S+ |
| DC-18 GHz | Varies | |
| Amplifiers | 2.5 kHz – 10 GHz, 26 dB gain | Varies |
| 0.01 – 20 GHz, 30 dB gain | RF-Lambda RAMP00G20GA | |
| Adapter | SMB female to SMA female | Mouser 565-72979 |
| Pelican case | Hard transit case for AWG5200 series, AWG70000 series | 016-2127-00 |
| Programmer manual | Programming commands, English only | Visit Tektronix website |
Rack mount kit
- GF-RACK3U
- Rack mount kit
Product upgrades
- AWG5202
- AWG52UP Opt SSD Provides an additional (or replacement) preprogrammed solid state drive
- AWG52UP SSD-SPARE Spare (or replacement) SSD with a Win10 OS image for AWG5200 products
- AWG52UP SSD-WIN10 SSD with Win10 OS image and license; functions as an upgrade for AWG5200 Win7
- AWG5200-2-2550 Increases sampling rate from 2.5 GS/s to 5 GS/s (10 GS/s interpolated)
- AWG5200-2DC Adds DC High Bandwidth Amplified outputs
- AWG5200-2HV Adds DC High Voltage outputs (SN B020000 and above only)
- AWG5200-2AC Adds AC Amplified outputs
- AWG5200-2DIGUP Adds digital up conversion (requires AWG5200-250 or AWG5200-2-2550)
- AWG5200-SEQ Adds Sequencing
- AWG5204
- AWG52UP Opt SSD Provides an additional (or replacement) preprogrammed solid state drive
- AWG52UP SSD-SPARE Spare (or replacement) SSD with a Win10 OS image for AWG5200 products
- AWG52UP SSD-WIN10 SSD with Win10 OS image and license; functions as an upgrade for AWG5200 Win7
- AWG5200-4-2550 Increases sampling rate from 2.5 GS/s to 5 GS/s (10 GS/s interpolated)
- AWG5200-4DC Adds DC High Bandwidth Amplified outputs
- AWG5200-4HV Adds DC High Voltage outputs (SN B020000 and above only)
- AWG5200-4AC Adds AC Amplified outputs
- AWG5200-4DIGUP Adds digital up conversion (requires AWG5200-450 or AWG5200-4-2550)
- AWG5200-SEQ Adds Sequencing
- AWG5208
- AWG52UP Opt SSD Provides an additional (or replacement) preprogrammed solid state drive
- AWG52UP SSD-SPARE Spare (or replacement) SSD with a Win10 OS image for AWG5200 products
- AWG52UP SSD-WIN10 SSD with Win10 OS image and license; functions as an upgrade for AWG5200 Win7
- AWG5200-8-2550 Increases sampling rate from 2.5 GS/s to 5 GS/s (10 GS/s interpolated)
- AWG5200-8DC Adds DC High Bandwidth Amplified outputs
- AWG5200-8HV Adds DC High Voltage outputs (SN B020000 and above only)
- AWG5200-8AC Adds AC Amplified outputs
- AWG5200-8DIGUP Adds digital up conversion (requires AWG5200-850 or AWG5200-8-2550)
- AWG5200-SEQ Adds Sequencing
Plug-ins
Plug-ins increase the capabilities of the arbitrary waveform generators. Various plug-ins are available providing unique types of waveforms or additional compensation. Each plug-in has its own installation file which installs seamlessly into the generators. After installation, it simply becomes a new menu selection. No other configuration is necessary.
| Plug-in | Description | Nomenclature | Licensed enhancements |
|---|---|---|---|
| Multitone & Chirp plug-in | Create chirps, notches, and tones | MTONENL-SS01
MTONEFL-SS01 |
|
| PreCompensation plug-in | Create correction coefficients that can be applied on waveforms to get flat frequency and linear phase response | PRECOMNL-SS01
PRECOMFL-SS01 |
|
| High Speed Serial plug-in | Create pre-distorted waveforms to test a device’s conformance to standards | HSSNL-SS01
HSSFL-SS01 |
S-Parameters and Intersymbol Interference unlocked with S-Parameters plug-in license |
| RF Generic plug-in | Create digitally modulated signals with multiple carrier groups | RFGENNL-SS01
RFGENFL-SS01 |
S-Parameters unlocked with S-Parameters plug-in license |
| Optical plug-in | Create waveforms with complex modulation schemes for optical testing | OPTICALNL-SS01
OPTICALFL-SS01 |
S-Parameters unlocked with S-Parameters plug-in license
Spread Spectrum Clocking unlocked with Spread Spectrum Clocking plug-in license |
| OFDM plug-in | Create Single or Multiple OFDM based Frames with one or more bursts | OFDMNL-SS01
OFDMFL-SS01 |
S-Parameters unlocked with S-Parameters plug-in license |
| RADAR plug-in | Create RADAR pulsed waveforms with various modulations and impairments | RADARNL-SS01
RADARFL-SS01 |
S-Parameters unlocked with S-Parameters plug-in license |
| Environment plug-in | Create real world scenarios for commercial, electronic warfare, and simulations for monitoring and receiver testing | ENVNL-SS01
ENVFL-SS01 |
|
| Spread Spectrum Clocking plug-in | Adds SSC capability to the High Speed Serial and Optical plug-ins | SSCFLNL-SS01
SSCFLFL-SS01 |
|
| S-Parameters plug-in | Adds S-Parameter capability to the RF Generic, High Speed Serial, Optical, OFDM, and RADAR plug-ins | SPARANL-SS01
SPARAFL-SS01 |
|
| Pattern Generator, Pulse, & LVDS Video Signal Generator plug-ins | Free web download |
Plug-ins require the purchase of a license before they are fully functional.
There are two types of licenses available for each plug-in: node-locked (NL) and floating (FL).
-
Node Locked Licenses (NL) provide your own copy of the application on your instrument and are permanently assigned to a product model/serial number.
-
Floating Licenses (FL) can be moved between product models.
