SignalVu-PC

  • ModelSignalVu-PC
  • MakerTektronix
  • DescriptionVector and RF Suite of Signal Analysis Software for PC
  • Rental문의요망
  • Stock문의요망

SignalVu-PC is the foundation of RF and vector signal analysis software that helps you easily validate RF designs. It is based on the signal analysis engine of the RSA5000 Series real-time signal analyzers and runs on your computer or Windows tablet. You can now move your analysis of acquisitions off the instrument and anywhere. SignalVu-PC is also the companion software that runs the analysis for the Tektronix USB real-time spectrum analyzers and Tektronix MSO/DPO Series oscilloscopes. Whether your design validation needs include wideband radar, high data rate satellite links, wireless LAN or frequency-hopping communications, the SignalVu-PC comprehensive suite of tools and application software can speed your time-to-insight.

Key features

  • Multi-domain tool set for spectrum analysis, vector signal analysis, demodulation, and more including:
    • Offline analysis of waveforms captured by all Tektronix spectrum analyzers and oscilloscopes standard
    • Real-time recording and analysis with Tektronix RSA signal analyzers (RSA7100, RSA600, RSA500, and RSA306 Series) standard
    • Options for multi-channel acquisition and analysis with Tektronix MSO/DPO oscilloscopes (5/6 Series MSO, LPD64, and MSO/DPO70000SX/DX models) 1
  • Analyze wideband designs
  • Enhance data analysis with the ability to leverage the processing power of Windows PCs and tablets, including the Tektronix 5/6 Series MSO with embedded Windows OS
  • Node Locked and Floating License available for each SignalVu-PC optional application
  • Analyze
    • 5G New Radio (NR) uplink/downlink RF power, Power dynamics, Signal quality, and Emissions measurements based on the 3GPP release 15/16 Standard
    • Extensive time-correlated, multi-domain displays connect problems in time, frequency, phase, and amplitude for quicker understanding of cause and effect when troubleshooting
    • Power measurements and signal statistics help you characterize components and systems: ACLR, Multicarrier ACLR, Power vs. Time, CCDF, and OBW/EBW
    • EMC/EMI pre-compliance and troubleshooting with RSA signal analyzers – CISPR detectors, predefined standards, limit lines, easy accessory setup, ambient capture, failure analysis, and report generation
    • WLAN spectrum and modulation transmitter measurements based on IEEE 802.11 a/b/g/j/p/n/ac/ad/ay standards
    • Bluetooth® Transmitter Measurements based on Bluetooth SIG RF specifications for Basic Rate, Low Energy, and Bluetooth 5. Some support of Enhanced Data Rate
    • Settling time measurements, frequency, and phase for characterization of wideband frequency-agile oscillators
    • Advanced pulse radar analysis suite – automated pulse measurements provide deep insight into pulse train behavior. Measure pulse statistics over many acquisitions (millions of pulses). Multi-channel analysis is enabled with MSO/DPO Oscilloscopes
    • General-purpose digital modulation analysis (SVM) provides modulation analysis of 26 modulation types from FSK to 1024QAM. Multi-channel analysis is enabled with MSO/DPO Oscilloscopes
    • Flexible OFDM analysis of custom OFDM signals
    • Frequency offset control for analyzing baseband signals with near-zero intermediate frequencies (IF)
    • AM/FM/PM modulation and audio measurements for characterization of analog transmitters and audio signals
    • Simple and complete APCO Project 25 transmitter compliance testing and analysis for Phase 1 (C4FM) and Phase 2 (TDMA)
    • Playback of recorded files from the USB spectrum analyzers (RSA306, RSA500, and RSA600)
    • LTE™ FDD and TDD Base Station (eNB) Transmitter RF measurements
    • Automated Phase Noise / Jitter measurements
    • Signal Classification and Survey
    • Mapping

Applications

  • Wideband radar and pulsed RF signals
  • Frequency agile communications
  • Broadband satellite and microwave backhaul links
  • Wireless LAN, Bluetooth, Commercial Wireless
  • Land Mobile Radio (LMR), APCO P25
  • Education
  • Long Term Evolution (LTE), Cellular
  • 5G NR Cellular base station or user equipment transmitter test
  • EMC/EMI pre-compliance and troubleshooting

Capture with a variety of tools

The software offers a comprehensive solution for analyzing RF (Radio Frequency) systems performance at every stage, from initial laboratory research through field testing to factory production. Designed for a seamless user experience across various windows devices, it enables you to gain valuable insights wherever you are.

Capture once – make multiple measurements without recapturing. Once stored in memory, SignalVu-PC provides detailed analysis in multiple domains, saving you time and enhancing your insight.

For example, the spectrogram display (bottom left panel of the image) shows how the frequency of an LFM (Linear Frequency Modulation) radar pulse changes over time. By selecting a specific moment during the pulse’s active phase, you can observe the chirp’s behavior as it transitions from low to high frequencies, as depicted in the upper right panel.

Setups, captures, and recordings are easily shareable among teams, for boosting collaboration and analysis.

Moreover, optional pulse radar analysis software enables you to analyze the pulse’s modulation characteristics and measure other essential parameters like pulse width and repetition intervals from the same captured data.

This approach provides a deep dive into the system’s performance without the need for additional data captures, streamlining your workflow and enriching your insights.

Connect with 5/6 Series B MSO or 6 Series LPD oscilloscopes

When the base connectivity CON option is installed, SignalVu-PC extends the functionality of either the 5/6 Series B MSO or 6 Series LPD oscilloscopes (with hardware option SV-RFVT). The combination of hardware and software transforms the oscilloscope into a wideband vector signal analyzer (VSA) with up to 2 GHz capture bandwidth on up to 8 independent channels2. To support acquisition length of more than 10 ms for a span of 2 GHz, RL-1 (125 Mpoints record length) license needs to be installed. SignalVu-PC can either run on the instrument (with optional Windows 10 SSD; 5/6-WIN) or on separate Windows PC connected via USB or LAN to the instrument.

SignalVu-PC controls the MSO RF front-end, acquires the vector-calibrated I/Q data, and makes wide-band, time-correlated, multi-domain measurements. You can analyze, correlate, and troubleshoot issues in time, frequency, phase, amplitude, and modulation.

In addition to simultaneous multi-channel Spectrums, Spectrograms, Channel Power, ACPR, OBW, RF Amplitude, Frequency and Phase vs. Time traces, Triggers, and IQ capture capability, SignalVu-PC and the Base Connectivity option adds essential VSA measurements and statistical analysis including RF I&Q vs. Time, CCDF, MCPR, SEM, Spurious, AM, FM, PM, and Automated Mask Search displays and alerts.

Leverage the MSO triggering capability and low phase noise performance to extend your debugging work into system-level validation and troubleshooting of your embedded RF devices. Perform modulation analysis and pass/fail testing of the most common wireless standards and modulation types with optional SignalVu-PC applications.

Analyzer

Time-correlated measurements can be made of frequency, phase, amplitude, and modulation versus time. This is ideal for signal analysis that includes frequency hopping, pulse characteristics, modulation switching, settling time, bandwidth changes, and intermittent signals.

Acquisitions from the USB Spectrum Analyzers and all Tektronix MSO/DPO Series oscilloscopes can be analyzed with SignalVu-PC, adding deep analysis capabilities to these broadband acquisition systems.



Time-correlated, multi-domain, multi-channel views provide a new level of insight into design or operational problems not possible with conventional analysis solutions. Here, the hop patterns of a narrowband signal can be observed using Spectrogram (upper right) and its hop characteristics can be precisely measured with Frequency vs Time display (bottom left). The time and frequency responses can be observed in the two views right as the signal hops from one frequency to the next. All of the analysis shown above is available in the free base version of SignalVu-PC.

Multi-channel support

Simultaneously acquire, independently configure settings, and analyze data from up to eight channels of the 5 or 6 Series MSO Oscilloscope using the general signal viewing (with option CON or SVE), advanced pulse radar analysis (SVP), and general-purpose digital modulation analysis (SVM) displays of SignalVu-PC.

This approach enables a comprehensive understanding of complex systems, such as RADAR, MIMO, uplink/downlink systems, and phased-array systems. It facilitates the examination of multiple signals across various parameters, including power, time, frequency, phase, and modulation by allowing you to independently configure channel settings such as center frequency, span, RBW, reference level, and analysis time. Available global settings control saves valuable time configuring multiple channels.

In addition to RF, you can analyze baseband signals by configuring channels as I/Q, or differential I/Q.

For multi-channel applications greater than 10 GHz in frequency, up to 70 GHz can be simultaneously analyzed on up to four channels using Tektronix DPO70000SX oscilloscopes. Refer to SignalVu for Performance Oscilloscopes for more details.

Three signals, each from a separate channel of the MSO64B, are acquired and analyzed with unique center frequencies, spans, and RBWs. These signals, featuring three different modulation schemes, are demodulated and analyzed within separate time slots, highlighting the independent control capabilities of each channel.

Shared acquisition multi-signal support

SignalVu-PC software expands your analysis capabilities even further on oscilloscope by enabling simultaneous analysis of multiple frequency dispersed signals within a single acquisition bandwidth. By configuring multiple sources to one physical oscilloscope channel, it supports independent analysis of signals at different frequency bands from I/Q data acquired by a single channel. This capability offers critical insights into advanced, multi-standard systems, streamlining development and validation.

One example among many where such analysis is beneficial involves electronic warfare or military communications research, where analyzing pulse radar and 64QAM signals simultaneously on the same medium helps test and ensure system reliability under mixed signal conditions.

Analyze both wide and narrow bandwidths simultaneously. On the same oscilloscope channel of the 6 Series MSO, a 64QAM signal and a pulsed radar signal are captured using Source 1. For detailed analysis, Source 2 zooms in on the radar signal, while Source 3 focuses on the 64QAM signal.



Optional applications tailored for your RF applications

The base SignalVu-PC version ships free3 and enables 16 or more general signal viewing and RF measurement displays including spectrum analysis, RF power and statistics, spectrograms, amplitude, frequency and phase versus time, and analog modulation measurements. Field-upgradeable software options may be added, including pulse radar analysis, general-purpose modulation analysis, settling time, automated phase noise measurements, EMI pre-compliance, commercial standard analysis (WLAN, Bluetooth, LTE, 5G NR), playback of recorded files, and more.

Wideband satellite and point-to-point microwave links can be directly observed with SignalVu-PC analysis software. Here, general-purpose Digital Modulation Analysis (SVM) is demodulating a 16QAM backhaul link running at 312.5 MS/s.



From FSK to 1024QAM, general-purpose digital modulation analysis (SVM) provides precise modulation accuracy and essential physical-layer measurements for 26 prevalent digital modulation types.

Settling time measurements (SVT) are easy and automated. The user can select measurement bandwidth, tolerance bands, reference frequency (auto or manual), and establish up to 3 tolerance bands vs. time for Pass/Fail testing. Settling time may be referenced to external or internal trigger, and from the last settled frequency or phase. In the illustration, frequency settling time for a hopped oscillator is measured from an external trigger point from the device under test.



Advanced pulse analysis

The advanced pulse analysis package (SVP) provides 31 individual measurements to automatically characterize long pulse trains often associated with RADAR. An 850 MHz wide LFM chirp centered at 3.85 GHz is seen here with measurements for pulses 7 through 14 (top right). The shape of the pulse can be seen in the Amplitude vs. Time plot shown in the upper left. Detailed views of pulse #8’s frequency deviation and parabolic phase trajectory are shown in the lower two views.

Cumulative statistics provides timestamps for Min, Max values as well as Peak to Peak, Average and Standard deviation over multiple acquisitions, further extending the analysis. Histogram shows you outliers on the right and left.
Pulse-Ogram displays a waterfall of multiple segmented captures, with correlated amplitude vs time and spectrum of each pulse. Can be used with an external trigger to show target range and speed.
Four pulse trains are captured and analyzed simultaneously with time-correlated markers, pulse table, and pulse trace displays used to gain insight into the signal behavior across channels over time.



Multi-channel support is enabled when the 5/6 Series MSO instruments are used. This allows you to capture and analyze up to 8 phase-coherent RF pulse trains of up to 5 GHz in frequency and up to 2 GHz in bandwidth. Or up to 4 pulse trains of up to 10 GHz in frequency and up to 2 GHz in bandwidth.

WLAN sub 6 GHz Wi-Fi transmitter testing

With the WLAN measurement applications, you can perform standards-based transmitter measurements in the time, frequency, and modulation domains.

  • SV23 supports IEEE 802.11a, b, g, j and p signals
  • SV24 supports 802.11n 20 MHz and 40 MHz SISO signals
  • SV25 802.11ac 20/40/80/160 MHz SISO signals

All modulation formats, as shown in the following table can be measured.

Standard Std PHY Freq band(s) Signal Modula­tion formats Band­width (max) 802.11- 2012 section
802.11b DSSS HR/DSSS 2.4 GHz DSSS/CCK

1 – 11 Mbps

DBSK, DQPSK

CCK5.5M, CCK11M

20 MHz 16 & 17
802.11g ERP 2.4 GHz DSSS/CCK/PBCC

1 – 33 Mbps

BPSK

DQPSK

20 MHz 17
802.11a OFDM 5 GHz OFDM 64

<54 Mbps

BPSK

QPSK

16QAM

64QAM

20 MHz 18
802.11g 2.4 GHz 20 MHz 19
802.11j/p 5 GHz 5, 10, 20 MHz 18
802.11n HT 2.4 GHz & 5 GHz OFDM 64, 128

≤ 150 Mbps

BPSK

QPSK

16QAM

64QAM

20 , 40 MHz 20
802.11ac VHT 5 GHz OFDM 64, 128, 256, 512

≤ 867 Mbps

BPSK

QPSK

16QAM

64QAM

256QAM

20, 40, 80, 160 MHz 22



The WLAN presets make the Error Vector Magnitude (EVM), Constellation, and Spectral Emission Mask (SEM) measurements push-button.

The WLAN RF transmitter measurements are defined by the IEEE 802.11- 2012 revision of the standard. Analysis of 1024-QAM 802.11ac signals is also possible.

IEEE 802.11 RF layer test IEEE reference 802.11-2012 Limit tested
Transmit Power ON/Off Ramp 16.4.7.8 (DSSS) (10%-90%) 2 usec
17.4.7.7 (“b”) (10%-90%) 2 usec
Transmit Spectrum mask 16.4.7.5 (DSSS) std mask
17.4.7.4 (“b”) std mask
18.3.9.3 (“a”) std mask
19.5.5 (“g”) std mask
20.3.20.1 (“n”) std mask
22.3.18.1 (“ac”) std mask
RF Carrier suppression 16.4.7.9 (“DSSS”) -15 dB
17.4.7.8 (“b”) -15 dB
Centre frequency leakage 18.3.9.7.2 (“a”) -15 dBc or +2 dB with respect to average subcarrier power
20.3.20.7.2 (“n”) 20 MHz follow 18.3.9.7.2
40 MHz -20dBc or 0 dB with respect to average subcarrier power
Transmit Spectral flatness 18.3.9.7.3 (“a”) +/-4dB (SC = -16… 16), +4/-6 dB (other)
20.3.20.2 (“n”) +/-4dB, +4/-6 dB
22.3.18.2 (“ac”) +/-4dB, +4/-6 dB (various BWs, 20-160 MHz)
Transmit Spectral flatness 18.3.9.7.3 (“a”) +/-4 dB (SC = -16… 16), +4/-6 dB (other)
20.3.20.2 (“n”) +/-4 dB, +4/-6 dB
22.3.18.2 (“ac”) +/-4 dB, +4/-6 dB (various BWs, 20-160 MHz)
Transmit Centre frequency tolerance 16.4.7.6 (“DSSS”) +/-25 ppm
17.4.7.5 (“b”) +/-25 ppm
18.3.9.5 (“a”) +/-20 ppm (20 MHz and 10 MHz), +/- 10 ppm (5 MHz)
19.4.8.3 (“g”) +/-25 ppm
20.3.20.4 (“n”) +/-20 ppm (5 GHz band), +/- 25 ppm (2.4 GHz band)
22.3.18.3 (“ac”) +/-20 ppm
Symbol clock frequency tolerance 16.4.7.7 (“DSSS”) +/-25 ppm
17.4.7.6 (“b”) +/-25 ppm
18.3.9.6 (“a”) +/-20 ppm (20 MHz and 10 MHz), +/-10 ppm (5 MHz)
19.4.8.4 (“g”) +/-25 ppm
20.3.20.6 (“n”) +/-20 ppm (5 GHz band), +/-25 ppm (2.4 GHz band)
22.3.18.3 (“ac”) +/-20 ppm
Transmit Modulation accuracy 16.4.7.10 (“DSSS”) Peak EVM < 0.35
17.4.7.9 (“b”) Peak EVM < 0.36
IEEE 802.11 WLAN transmitter test summary
IEEE 802.11 RF layer test IEEE reference 802.11-2012 limit
Transmitter Constellation Error 18.3.9.7.4 (“a”) Modulation Coding rate (R) Relative constellation error
BPSK 1/2 -5
BPSK 3/4 -8
QPSK 1/2 -10
QPSK 3/4 -13
16-QAM 1/2 -16
16-QAM 3/4 -19
64-QAM 2/3 -22
64-QAM 3/4 -25
20.3.20.7.3 (“n”) BPSK 1/2 -5
QPSK 1/2 -10
QPSK 3/4 -13
16-QAM 1/2 -16
16-QAM 3/4 -19
64-QAM 2/3 -22
64-QAM 3/4 -25
64-QAM 5/6 -27
22.3.18.4.3 (“ac”) BPSK 1/2 -5
QPSK 1/2 -10
QPSK 3/4 -13
16-QAM 1/2 -16
16-QAM 3/4 -19
64-QAM 2/3 -22
64-QAM 3/4 -25
64-QAM 5/6 -27
256-QAM 3/4 -30
256-QAM 5/6 -32
Easy analysis of WLAN 802.11ac transmitter with a WLAN preset that provides spectral emission mask, constellation diagram, and decoded burst information.

Bluetooth transmitter testing

Two options have been added to help with Bluetooth SIG standard base transmitter RF measurements in the time, frequency and modulation domains. Option SV27 supports Basic Rate and Low Energy Transmitter measurements defined by RF.TS.4.2.0 and RF-PHY.TS. 4.2.0 Test Specification. It also demodulates and provides symbol information for Enhanced Data Rate (EDR) packets. Option SV31 supports Bluetooth 5 standards (LE 1M, LE 2M, LE Coded) and measurements defined in the Core Specification. Both options also decode the physical layer data that is transmitted and color-encode the fields of packet in the Symbol Table for clear identification.

Pass/Fail results are provided with customizable limits and the Bluetooth presets make the different test set-ups push-button.

Below is a summary of the measurements that are automated with option SV27 and SV31 (unless noted):

  • Bluetooth Low Energy (BLE) Transmitter Measurements
    • Output power at NOC TRM-LE/CA/01/C and at EOC TRM-LE/CA/02/C
    • In-band emission at NOC TRM-LE/CA/03/C and at EOC TRM-LE/CA/04/C
    • Modulation characteristics TRM-LE/CA/05/C
    • Carrier frequency offset and drift at NOC TRM-LE/CA/06/C and at EOC TRM-LE/CA/07/C
  • Basic Rate Transmitter Measurements
    • Output power TRM/CA/01/C
    • Power Density TRM/CA/02/C (no preset)
    • Power Control TRM/CA/03/C (no preset)
    • Tx output Spectrum – Frequency Range TRM/CA/04/C (no preset)
    • Tx output spectrum – 20 dB Bandwidth TRM/CA/05/C
    • Tx output spectrum – Adjacent Channel Power TRM/CA/06/C
    • Modulation characteristics TRM/CA/07/C
    • Initial carrier frequency tolerance TRM/CA/08/C
    • Carrier frequency-drift TRM/CA/09/C

The following additional information is also available with SV27 and SV31: symbol table with color coded field information, constellation, eye diagram, frequency deviation vs time with highlighted packet and octet, frequency offset and drift detailed table, as well as packet header field decoding. Markers can be used to cross-correlate the time, vector and frequency information.

Easy validation of Bluetooth transmitter with push button preset, pass/fail information and clear correlation between displays.

Mapping

When paired with the Alaris Smart Antenna with electronic compass, and battery-powered RSA500 Series (with built-in GPS transceiver) or RSA306B (with third party GPS dongle), the Mapping (MAP) application enables interference hunting, spectrum clearing, coverage mapping, surveying, and triangulation on signal sources.

Locate interference with an azimuth function that lets you draw a line or an arrow on a mapped measurement to indicate the direction your antenna was pointing when you took a measurement. You can also create and display measurement results and labels.

Mapped channel power readings using the azimuth function.

LTE FDD and TDD base station transmitter RF testing

Option SV28 enables the following LTE measurements:

  • Cell ID

  • Channel Power

  • Occupied Bandwidth (OBW)

  • Adjacent Channel Leakage Ratio (ACLR)

  • Spectrum Emission Mask (SEM)

  • Transmitter Off Power for TDD

  • Reference Signal Power



There are four presets to accelerate pre-compliance testing and determine the Cell ID. These presets are defined as Cell ID, ACLR, SEM, Channel Power and TDD Toff Power. The measurements follow the definition in 3GPP TS Version 12.5 and support all base station categories, including picocells and femtocells. Pass/Fail information is reported and all channel bandwidths are supported.

The Cell ID preset displays the Primary Synchronization Signal (PSS) and the Secondary Synchronization Signal (SSS) in a Constellation diagram. It also provides Frequency Error and Reference Signal (RS) Power.

The ACLR preset measures the E-UTRA and the UTRA adjacent channels, with different chip rates for UTRA. ACLR also supports Noise Correction based on the noise measured when there is no input. Both ACLR and SEM will operate in swept mode (default) or in faster single acquisition if the instrument has enough acquisition bandwidth.

Fast validation of LTE base station transmitter with push button preset, and pass/fail information

5G NR modulation analysis and measurements option

5G NR is among the growing set of signal standards, applications, and modulation types supported by SignalVu-PC Vector Signal Analysis (VSA) software. The SignalVu-PC VSA 5G NR analysis option provides comprehensive analysis capabilities in the frequency, time, and modulation domains for FR1 and FR2 (mmWave) signals based on the 3GPP’s 5G NR specification.

By configuring result traces of spectrum, acquisition time, and NR specific modulation quality (e.g, EVM, frequency error, I/Q error) traces and tables, engineers can identify overall signal characteristics and troubleshoot intermittent error peaks or repeated synchronization failures.

Error Vector Magnitude (EVM) is a figure of merit used to describe signal quality. It does this by measuring the difference on the I/Q plane between the ideal constellation point of the given symbol versus the actual measured point. It can be measured in dB or % of the ideal sub-symbol, normalized to the average QAM power received, and display constellation of symbols vs ideal symbol. The EVM vs Symbol or EVM vs Time gives the EVM of OFDM symbols present in the number of symbols considered or the time within a slot.

For automated testing, SCPI remote interfaces are available to accelerate design, which enables the quick transition to the design verification and manufacturing phases.

Constellation, Summary View, CHP, and SEM displays supported in option 5G NR

5G NR transmitter measurements core supported features

5G NR option (5GNRNL-SVPC)4 supports 5G NR modulation analysis measurements according to Release 15 and Release 16 of 3GPP’s TS38 specification, including:

  • Analysis of uplink and downlink frame structures
  • 5G NR measurements and displays including
    • Modulation Accuracy (ModAcc)
    • Channel Power (CHP)
    • Adjacent Channel Power (ACP)
    • Spectrum Emission Mask (SEM)
    • Occupied Bandwidth (OBW)
    • Power Vs Time (PVT)5
    • Error Vector Magnitude (EVM)
    • Summary table with all scalar results for ModAcc, SEM, CHP, ACP, OBW, PVT, and EVM measurements
  • In-depth analysis and troubleshooting with coupled measurements across domains, use multiple markers to correlate results to find root-cause.
  • Saves reports in CSV format with configuration parameters and measurement results
  • Configurable parameters of PDSCH or PUSCH for each component carrier
  • For downlink, supported test models for FDD and TDD per 3GPP specifications

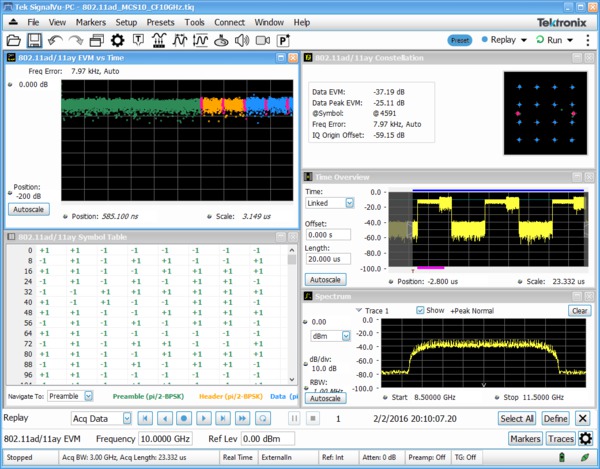

WiGig IEEE802.11ad/ay 60 GHz Wi-Fi transmitter testing (offline analysis)

Options SV30NL-SVPC and SV30FL-SVPC provide offline analysis for WiGig IEEE802.11ad/ay IC characterization. However, Tektronix DPO70000SX Series oscilloscope with option SV30 installed can be used for full online 60 GHz measurements and analysis using SignalVu. For more details, refer to SignalVu-PC vs. SignalVu.

SV30 installed on an oscilloscope provides significant margin in EVM performance compared to what is required by the standard. Both Control PHY (802.11ad) and Single Carrier PHY (802.11ad and 802.11ay) are supported and provides analysis of 802.11ay 2.16 GHz packets or 4.23 GHz adjacent 2-channel bonded packets.

Testing and verification can be done on IF and RF setups. RF power, Received Power Indicator (RCPI), Frequency error (Max, Average, Std. Deviation), DC Offset, IQ DC origin offset, IQ Gain and Phase imbalance, Signal Quality, and estimated SNR measurements are reported in the Summary display. Pass/Fail results are reported using customizable limits and the presets make the test set-up push-button.

For further insight into the signal, color coding is available in the user interface, allowing you to visualize the EVM spread across the analyzed packet with color codes differentiating regions. You can also view the demodulated symbols in tabular form with different color codes and with an option to traverse to the start of each region for easier navigation.

SignalVu PC EN US 37W 27973 23
WiGig IEEE802.11ad/ay transmitter testing (offline analysis)
Modulation formats

802.11ad: MCS0-12.6

802.11ay: MCS1-21

802.11ad/ay Single carrier: π/2 BPSK, π/2 QPSK, π/2 16QAM, π/2 64QAM

802.11ad Control PHY: π/2 DBPSK

Measurements

RF output power, Received Channel Power Indicator (RCPI), Estimated SNR, Frequency Error, Symbol Rate Error, IQ Origin Offset, IQ Phase Imbalance, IQ Gain Imbalance, IQ Quadrature Error, EVM results for each packet region (STF, CEF, Header and Data). Packet information includes the Packet type, Preamble, Synchronization Word or Access Code, Packet Header, Payload length, and CRC details.

Displays

Constellation, EVM vs Time, Symbol Table, Summary

Playback of recorded files

With SV56, playback of recorded files from one of the USB spectrum analyzers is possible. Playback of recorded signals can reduce hours of watching and waiting for a spectral violation to minutes at your desk reviewing recorded data. Recording length is limited only by storage media size and recording is a basic feature included in SignalVu-PC. SignalVu-PC SV56 Playback allows for complete analysis by all SignalVu-PC measurements, including DPX Spectrogram. Minimum signal duration specifications are maintained during playback. AM/FM audio demodulation can be performed. Variable span, resolution bandwidth, analysis length, and bandwidth are all available. Frequency mask testing can be performed on recorded signals up to 40 MHz in span, with actions on mask violation including beep, stop, save trace, save picture, and save data. Portions of the playback can be selected and looped for repeat examination of signals of interest. Playback can be gap-free, or time gaps can be inserted to reduce review time. A Live Rate playback ensures fidelity of AM/FM demodulation and provides a 1:1 playback vs. actual time. Clock time of the recording is displayed in the spectrogram markers for correlation to real world events. In the illustration below, the FM band is being replayed, with a mask applied to detect spectral violations, simultaneous with listening to the FM signal at the center frequency of 92.3 MHz.

Signal survey

The signal classification application (SV54) enables expert systems guidance to aid the user in classifying signals. It provides graphical tools that allow you to quickly create a spectral region of interest, enabling you to classify and sort signals efficiently. The spectral profile mask, when overlaid on top of a trace, provides signal shape guidance, while frequency, bandwidth, channel number, and location are displayed allowing for quick checks. WLAN, GSM, W-CDMA, CDMA, Bluetooth standard and enhanced data rate, LTE FDD and TDD, and ATSC signals can be quickly and simply classified. Databases can be imported from your H500/RSA2500 signal database library for easy transition to the new software base.

Above is a typical signal survey. This survey is of a portion of the TV broadcast band, and 7 regions have been declared as either Permitted, Unknown, or Unauthorized, as indicated by the color bars for each region.
In this illustration, a single region has been selected. Since we have declared this to be an ATSC video signal, the spectrum mask for the ATSC signal is shown overlaid in the region. The signal is a close match to the spectrum mask, including the vestigial carrier at the lower side of the signal, characteristic of ATSC broadcasts.

SignalVu-PC with mapping can be used to manually indicate the azimuth of a measurement made in the field, greatly aiding in triangulation efforts. The addition of a smart antenna able to report its direction to SignalVu-PC automates this process. Automatically plotting the azimuth/bearing of a measurement during interference hunting can greatly speed the time spent searching for the source of interference. Tektronix mapping capability provides support for the third-party Alaris DF-A0047 handheld direction finding antenna with frequency coverage from 20 MHz -8.5 GHz (optional 9 kHz-20 MHz) as part of a complete interference hunting solution. All SignalVu-PC data streams include time-stamp information for effective data logging and coherent signal analysis applications. Full specifications for the DF-A0047 antenna are available at https://www.alarisantennas.com/products/df-a0047-handheld-wideband-direction-finding-antenna/

Automated phase noise and jitter measurements

Phase noise degrades the ability to process Doppler information in radar systems and degrades error vector magnitude in digitally modulation communication systems. Automated phase noise and jitter measurements with a spectrum analyzer (PHAS) may reduce the cost of your measurements by reducing the need for a dedicated phase noise analyzer.

Shown below, the phase noise of a 1 GHz carrier is measured at -133 dBc/Hz at 10 kHz offset. Single-sideband phase noise is displayed in dBc/Hz versus offset frequencies from carrier, shown in trace or tabular form: one ±Peak trace (in blue) and one average trace (in yellow). Trace smoothing and averaging is supported.

The RSA7100B’s intrinsic phase noise of -134 dBc/Hz, at this frequency and across its operating range, provides ample measurement margin for a vast majority of applications.

Applications include testing VCO phase noise, oscillator phase noise, clock source jitter, signal generator phase noise, and more. The Tektronix phase noise / jitter application, when combined with DPX® signal processing, provides a powerful solution for designing and troubleshooting momentarily unstable signal sources.

The phase noise application performs automated carrier tracking, averaging, and dynamic measurement bandwidth adjustment, providing the accuracy and speed of measurement needed at all carrier offsets – ranging from 10 Hz to 1 GHz. Results are available in log-frequency trace or tabular form with pass/fail limits on-screen or via programmatic control. Integration limits are programmable for RMS phase noise, jitter, and residual FM. The low instrument phase noise of the RSA7100B together with this measurement application allows for high-performance phase noise measurements at frequencies up to 26.5 GHz.

SignalVu PC EN US 37W 27973 23

The previous figure shows the RSA7100B typical and nominal phase noise performance.

Education license

Qualified educational facilities can cost-effectively use SignalVu-PC in teaching environments. The specially priced education version includes all available applications except the 5GNR analysis option and provides results watermarked ‘Education Version’.

Measurement functions

Spectrum analyzer measurements

(base software)

Channel power, Adjacent channel power, Multicarrier adjacent channel Power/Leakage ratio, Occupied bandwidth, xdB down, Marker measurements of power, delta power, integrated power, power density, dBm/Hz, and dBc/Hz, Signal strength with audible feedback.
Time domain and statistical measurements

(base software)

RF IQ vs time, Amplitude vs time, Power vs time, Frequency vs time, Phase vs time, CCDF, Peak-to-Average ratio, Amplitude, Frequency, and Phase modulation analysis.
Automated phase noise / jitter measurements (PHAS) (RSA7100 only) Carrier power, Frequency error, RMS phase noise, Jitter, Residual FM.
WLAN 802.11a/b/g/j/p measurement application (SV23) All of the RF transmitter measurements as defined in the IEEE standard, and a wide range of additional scalar measurements such as Carrier Frequency error, Symbol Timing error, Average/peak burst power, IQ Origin Offset, RMS/Peak EVM, and analysis displays, such as EVM and Phase/Magnitude Error vs time/frequency or vs symbols/ subcarriers, as well as packet header decoded information and symbol table.

SV24 requires SV23.

SV25 requires SV24.

WLAN 802.11n measurement application (SV24)
WLAN 802.11ac measurement application (SV25)
APCO P25 compliance testing and analysis application (SV26) Complete set of push-button TIA-102 standard-based transmitter measurements with pass/fail results including ACPR, transmitter power and encoder attack times, transmitter throughput delay, frequency deviation, modulation fidelity, symbol rate accuracy, and transient frequency behavior, as well as HCPM transmitter logical channel peak ACPR, off slot power, power envelope, and time alignment.
Bluetooth Basic LE TX SIG measurements (SV27) Presets for transmitter measurements defined by Bluetooth SIG for Basic Rate and Bluetooth Low Energy. Results also include Pass/Fail information. Application also provides Packet Header Field Decoding and can automatically detect the standard including Enhanced Data Rate.
Bluetooth 5 measurements (SV31) Bluetooth SIG measurements for Bluetooth Low Energy version 5. Results also include Pass/Fail information. Application also provides Packet Header Field Decoding of LE Data Packets.

SV31 requires SV27.

AM/FM/PM modulation and audio measurements

(SVA)

Carrier power, frequency error, modulation frequency, modulation parameters (±peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, THD, TNHD, hum and noise.
Settling time (frequency and phase)

(SVT)

Measured frequency, Settling time from last settled frequency, Settling time from last settled phase, Settling time from trigger. Automatic or manual reference frequency selection. User-adjustable measurement bandwidth, averaging, and smoothing. Pass/Fail mask testing with 3 user-settable zones.
Advanced Pulse analysis

(SVP)

Pulse-Ogram™ waterfall display of multiple segmented captures, with amplitude vs time and spectrum of each pulse. Pulse frequency, Delta Frequency, Average on power, Peak power, Average transmitted power, Pulse width, Rise time, Fall time, Repetition interval (seconds), Repetition interval (Hz), Duty factor (%), Duty factor (ratio), Ripple (dB), Ripple (%), Droop (dB), Droop (%), Overshoot (dB), Overshoot (%), Pulse- Ref Pulse frequency difference, Pulse- Ref Pulse phase difference, Pulse- Pulse frequency difference, Pulse- Pulse phase difference, RMS frequency error, Max frequency error, RMS phase error, Max phase error, Frequency deviation, Phase deviation, Impulse response (dB), Impulse response (time), Time stamp. Oscilloscopes support multi-channel analysis when used.
Flexible OFDM analysis

(SVO)

OFDM analysis with support for WLAN 802.11a/g/j and WiMAX 802.16-2004. Constellation, Scalar measurement summary, EVM or power vs carrier, Symbol table (Binary or Hexadecimal).
General-purpose digital modulation analysis

(SVM)

Error vector magnitude (EVM) (RMS, Peak, EVM vs Time), Modulation error ratio (MER), Magnitude Error (RMS, peak, mag error vs time),Phase error (RMS, Peak, Phase error vs time), Origin offset, Frequency error, Gain imbalance, Quadrature error, Rho, Constellation, Symbol table.

FSK only: Frequency deviation, Symbol timing error. Oscilloscopes support multi-channel analysis when used.

Playback of recorded files (SV56) Playback of files recorded with one of the USB spectrum analyzers (RSA306, RSA500, or RSA600). Controls for file selection, begin/end points. Rate controls for gap-free or live-rate playback.
LTE Downlink RF measurements (SV28) Presets for Cell ID, ACLR, SEM, Channel Power and TDD Toff Power. Supports TDD and FDD frame format and all base stations defined by 3GPP TS version 12.5. Results include Pass/Fail information. Real-Time settings make the ACLR and the SEM measurements fast, if the connected instrument has required bandwidth.
5G NR Measurements (5GNRNL-SVPC) Presets for Channel Power (CHP), Adjacent Channel Power (ACP), Power Vs Time (PVT)5, Modulation Accuracy (including Error Vector Magnitude (EVM), Frequency Error, IQ Error), EVM vs. Symbol, Occupied Bandwidth (OBW), Spectral Emission Mask (SEM), Constellation Diagram, and summary table with scalar results.
WiGig IEEE 802.11ad/ay (SV30)

(For offline analysis only. Real-time 60 GHz measurements can be made with Opt. SV30 on DPO70000SX Series oscilloscopes.)

Presets for Control PHY (802.11ad) and Single Carrier PHY (802.11ad and 802.11ay). The 802.11ay analysis results are shown for the EDMG, PreEDMG1, and PreEDMG2 regions. The 802.11ad preset measures EVM in each of the packet fields per the standard, and decodes the header packet information. RF power, Received Channel Power Indicator, Frequency error, IQ DC origin offset, IQ Gain and Phase imbalance are reported in the Summary display. Pass/Fail results are reported using customizable limits.
CISPR Detectors (Quasi Peak and Average) (SVQP) This option enables CISPR Quasi Peak and Average detectors (defined per CISPR16) in Spectrum and Spurious displays.
EMC/EMI pre-compliance and troubleshooting (EMCVU) This option supports many predefined limit lines. It also adds a wizard for easy setup of recommended antennas, LISN, and other EMC accessories with a one-button push. When using the new EMC-EMI display, you can accelerate the test by applying the time consuming quasi peak only on failures. This display also provides a push-button ambient measurement. The Inspect tool lets you measure frequencies of interest locally, removing the need for scanning.

Specifications

Performance (typical)

The following is typical performance of SignalVu-PC analyzing acquisitions from any DPO70000SX or DPO/MSO70000 Series oscilloscopes. All other analysis specifications are available in the instrument’s datasheet. Performance for SignalVu-PC when used with the RSA7100 real-time spectrum analyzer and the RSA306, RSA500, RSA600 USB real time spectrum analyzers are shown respectively in the RSA7100, RSA306, RSA500, and RSA600 datasheets.
Frequency-related
Frequency range
See appropriate instrument data sheet
Initial center frequency setting accuracy
Equal to time-base accuracy of instrument
Center frequency setting resolution
0.1 Hz
Frequency offset range
0 Hz to the maximum bandwidth of the oscilloscope
Frequency marker readout accuracy
±(Reference Frequency Error × Marker Frequency + 0.001 × Span + 2) Hz
Span accuracy
±0.3%
Reference frequency error
Equal to oscilloscope reference frequency accuracy, aging, and drift. Refer to appropriate DPO/MSO data sheet.
Tuning Tables
Tables that present frequency selection in the form of standards-based channels are available for the following.
Cellular standards families: AMPS, NADC, NMT-450, PDC, GSM, CDMA, CDMA-2000, 1xEV-DO WCDMA, TD-SCDMA, LTE, WiMax
Unlicensed short range: 802.11a/b/j/g/p/n/ac, Bluetooth
Cordless phone: DECT, PHS
Broadcast: AM, FM, ATSC, DVBT/H, NTSC
Mobile radio, pagers, other: GMRS/FRS, iDEN, FLEX, P25, PWT, SMR, WiMax
Analysis-related
Frequency (base software)
Spectrum (amplitude vs linear or log frequency)
Spectrogram (amplitude vs frequency over time)
Time and statistics (base software)
Amplitude vs time
Frequency vs time
Phase vs time
Amplitude modulation vs time
Frequency modulation vs time
Phase modulation vs time
RF IQ vs time
Time overview
CCDF
Peak-to-Average ratio
Settling time, frequency, and phase (SVT)
Frequency settling vs time
Phase settling vs time
Advanced Pulse measurements suite (SVP)
Pulse results table
Pulse trace (selectable by pulse number)
Pulse statistics (trend of pulse results, FFT of time trend, and histogram)
Cumulative statistics
Cumulative histogram
Pulse-Ogram
Digital demod (SVM)
Constellation diagram
EVM vs Time
Symbol table (binary or hexadecimal)
Magnitude and phase error vs time, and signal quality
Demodulated IQ vs time
Eye diagram
Trellis diagram
Frequency deviation vs time
Flexible OFDM (SVO)
EVM vs Symbol, vs Subcarrier
Subcarrier power vs symbol, vs subcarrier
Subcarrier constellation
Symbol data table
Mag error vs Symbol, vs Subcarrier
Phase error vs Symbol, vs Subcarrier
Channel frequency response
Automated phase noise and jitter measurements (PHAS)
Carrier power
Frequency error
RMS phase noise
Jitter
Residual FM
WLAN measurements (SV23, SV24, SV25 or SV2C)
Burst index
Burst power
Peak to average burst power
IQ origin offset
Frequency error
Common pilot error
Symbol clock error
RMS and Peak EVM for Pilots/Data
Peak EVM located per symbol and subcarrier
Packet header format information
Average power and RMS EVM per section of the header
WLAN power vs Time or vs Symbol
Burst Width
WLAN symbol table
WLAN Constellation
Spectrum emission mask
Spurious
EVM vs symbol (or time), vs subcarrier (or frequency)
Mag error vs symbol (or time), vs subcarrier (or frequency)
Phase error vs symbol (or time), vs subcarrier (or frequency)
WLAN channel frequency response vs symbol (or time), vs subcarrier (or frequency)
WLAN spectral flatness vs symbol (or time), vs subcarrier (or frequency)
APCO P25 measurement application (SV26)
RF output power, operating frequency accuracy, modulation emission spectrum, unwanted emissions spurious, adjacent channel power ratio, frequency deviation, modulation fidelity, frequency error, eye diagram, symbol table, symbol rate accuracy, transmitter power and encoder attack time, transmitter throughput delay, frequency deviation vs. time, power vs. time, transient frequency behavior, HCPM transmitter logical channel peak adjacent channel power ratio, HCPM transmitter logical channel off slot power, HCPM transmitter logical channel power envelope, HCPM transmitter logical channel time alignment, cross-correlated markers
Bluetooth Basic LE Tx (SV27) and Bluetooth 5 (SV31) Measurements
Peak Power, Average Power, Adjacent Channel Power or InBand Emission mask, -20dB Bandwidth, Frequency Error, Modulation Characteristics including ΔF1avg (11110000), ΔF2avg (10101010), ΔF2 > 115 kHz, ΔF2/ΔF1 ratio, frequency deviation vs. time with packet and octet level measurement information, Carrier Frequency f0, Frequency Offset (Preamble and Payload), Max Frequency Offset, Frequency Drift f1-f0, Max Drift Rate fn-f0 and fn-fn-5, Center Frequency Offset Table and Frequency Drift table, color-coded Symbol table, Packet header decoding information, eye diagram, constellation diagram, editable limits
LTE Downlink RF measurements (SV28)
Adjacent Channel Leakage Ratio (ACLR), Spectrum Emission Mask (SEM), Channel Power, Occupied Bandwidth, Power vs. Time displaying Transmitter OFF power for TDD signals and LTE constellation diagram for PSS, SSS with Cell ID, Group ID, Sector ID, Reference Signal (RS) Power, and Frequency Error.
5G NR Uplink/Downlink measurements (5GNRNL-SVPC)
Channel Power (CHP), Adjacent Channel Power (ACP), Power Vs Time (PVT)5, Modulation Accuracy (including Error Vector Magnitude (EVM), Frequency Error, IQ Error), EVM vs. Symbol, Occupied Bandwidth (OBW), Spectral Emission Mask (SEM), Constellation Diagram, and summary table with scalar results.
WiGig 802.11ad/ay Measurements (SV30) (Offline analysis)
RF output power, Received Channel Power Indicator (RCPI), Estimated SNR, Frequency Error, Symbol Rate Error, IQ Origin Offset, IQ Gain Imbalance, IQ Phase Imbalance, IQ Quadrature Error,
EVM results for each packet region: Packet information, 802.11ad (STF, CEF, Header, Guard, and Data), 802.11ay (LSTF, LCEF, L Header, EDMG Header-A, EDMG STF, EDMG CEF Guard and Data) including the Packet type, Preamble, Synchronization Word or Access Code, Packet Header, Payload length, and CRC details.

Signal strength

Signal Strength display
Signal strength indicator
Located at right side of display
Measurement bandwidth
Up to 40 MHz, dependent on span and RBW setting
Tone type

Variable frequency based on received signal strength

AM/FM/PM modulation and audio measurements (SVA)

All published performance based on conditions of Input Signal: 0 dBm, Input Frequency: 100 MHz, RBW: Auto, Averaging: Off, Filters: Off. Sampling and input parameters optimized for best results.

Carrier frequency range6
1 kHz or (1/2 × audio analysis bandwidth) to maximum input frequency
Maximum audio frequency span
10 MHz
Audio filters
Low pass (kHz)
0.3, 3, 15, 30, 80, 300, and user-entered up to 0.9 × audio bandwidth
High pass (Hz)
20, 50, 300, 400, and user-entered up to 0.9 × audio bandwidth
Standard
CCITT, C-Message
De-emphasis (µs)
25, 50, 75, 750, and user-entered
File
User-supplied .TXT or .CSV file of amplitude/frequency pairs. Maximum 1000 pairs.
FM modulation analysis
FM measurements,
Carrier power, carrier frequency error, audio frequency, deviation (+peak, –peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
FM deviation accuracy
±1.5% of deviation
FM rate accuracy
±1.0 Hz
Carrier frequency accuracy
±1 Hz + (transmitter frequency × reference frequency error)
Residuals (FM) (rate: 1 kHz to 10 kHz, deviation: 5 kHz)
THD
0.2% (MSO/DPO70000)
SINAD
44 dB (MSO/DPO70000)
AM modulation analysis
AM measurements
Carrier power, audio frequency, modulation depth (+peak, –peak, peak-peak/2), RMS, SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
AM depth accuracy (rate: 1 kHz, depth: 50%)
±1% + 0.01 × measured value
AM rate accuracy (rate: 1 kHz, depth: 50%)
±1.0 Hz
Residuals (AM)
THD
0.3% (MSO/DPO70000)
SINAD
48 dB (MSO/DPO70000)
PM modulation analysis
PM measurement
Carrier power, carrier frequency error, audio frequency, deviation (+peak, –peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
PM deviation accuracy (rate: 1 kHz, deviation: 0.628 rad)
±100% × (0.01 + (rate / 1 MHz))
PM rate accuracy (rate: 1 kHz, deviation: 0.628 rad)
±1 Hz
Residuals (PM)
THD
0.1% (MSO/DPO70000)
SINAD
48 dB (MSO/DPO70000)
Direct audio input
Audio measurements
Signal power, audio frequency (+peak, –peak, peak-peak/2, RMS), SINAD, modulation distortion, S/N, total harmonic distortion, total non-harmonic distortion, hum and noise
Direct input frequency range (for audio measurements only)

1 Hz to 10 MHz

Maximum audio frequency span

10 MHz

Audio frequency accuracy
±1 Hz
Residuals (PM)
THD
1.5%
SINAD
38 dB

    회사명

    부서명

    구매문의판매문의렌탈문의수리문의교정문의

    전화상담방문상담견적서상담

    문의 및 요청내용 *

    개인정보 수집, 이용 및 처리방침

    - 수집항목: 이름, 연락처, 이메일, 주소
    - 수집/이용목적: 견적요청에 대한 접수 및 결과 회신
    - 이용기간: 원칙적으로 개인정보 수집 및 이용목적이 달성된 후에는 해당 정보를 지체 없이 파기합니다.
    단, 관계법령의 규정에 의하여 보전할 필요가 있는 경우 일정기간 동안 개인정보를 보관할 수 있습니다.

    그 밖의 사항은 (주)누비콤 개인정보취급방침을 준수하며 견적서를 요청하면 개인정보처리방침에 동의하는 것으로 간주됩니다.

    • 개인정보처리방침에 동의합니다.
